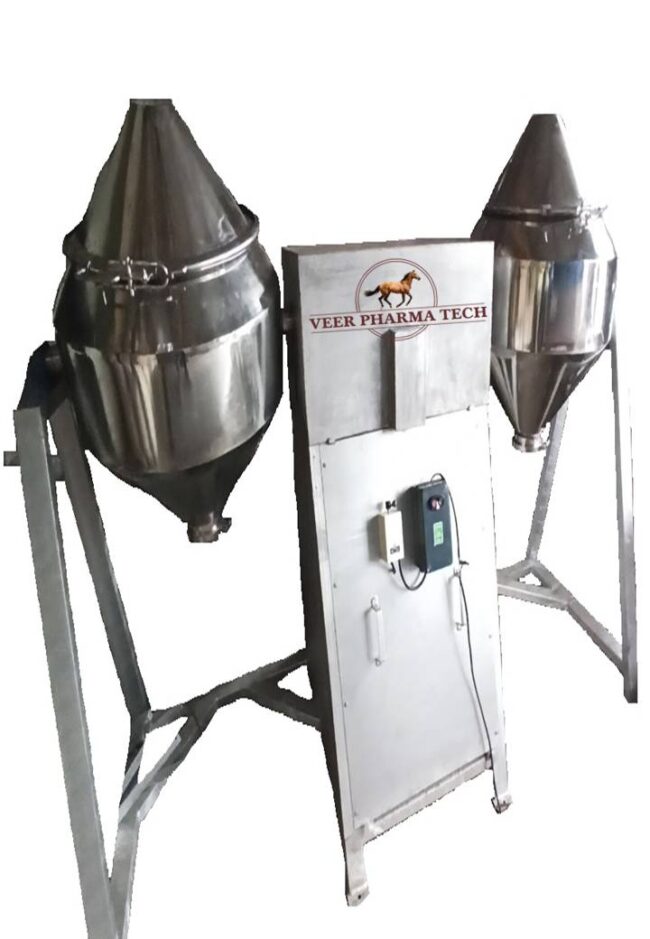

high Speed Double Cone Blender

Avaibility: In Stock

All Moving Parts Covered With Ss304 Covers.

Safety Guards Made From Ss304 Pipes Provided In Front Of The M/C With Limit Switch.

Panel Fabricated From Ss304 Material With Facility Of Three Phase Indication, D.O.L. Tarter, Digital Timer & Amp Meter. As Per Customer Requirement Machine Will Be Provided With Left Side Drive Or With Right Side Drive .

The Conical Shape At Both Ends Enables Uniform Mixing And Easy Discharge .

All Contact Parts Are Made Out Of Ss304/316(As Per Customer Requirement) Quality Material.

Maximum Care Has Been Taken To Ensure Safe Operation Of The Unit. (All Safety Guards &Covers Made Out Of Ss304 In Gmp Model As Required By You )In Gmp Model.

The Conical Shape Of Both Ends Enables Uniform Mixing And Easy Discharge. Depending On The Product.

Technical Details

Model

kgs

Gross

Volume ltr

Working

Volume ltr

Output

speed

Motor

H.P.

Discharge

valve

Overall Dimensions
Length

mm

Width

mm

Height

mm

VPTDCB 10 28 20 35 0.5 1-1/5 600 350 900
VPTDCB 25 80 50 35 1 2’’ 800 450 900
VPTDCB 50 130 100 35 1.5 3” 1200 700 1100
VPTDCB 100 290 200 35 3 4” 1600 700 1800
VPTDCB  200 380 400 35 5 4” 1600 800 1500
VPTDCB 250 320 500 35 7.5 5” 2400 800 1800
VPTDCB 300 350 600 35 7.5 5” 2600 900 1800
VPTDCB 500 1300 1000 30 10 6” 2600 1100 2000
VPTDCB 1000 2500 2000 30 15 12” 3000 1300 2500
VPTDCB 2000 4800 4000 30 20 12” 3800 1500 3500
